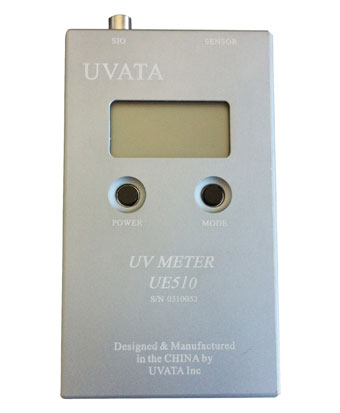

UE510 (the sensor probe connected outside the controler)



This type UV illuminometer could detect the UV LED power, energy, temperature and the time when the maximum appeared.



Spectrum range: UVA



Peak wavelength: optional (UEH365/UEH405/UEH460)



Light intensity range: 0-10W/cm2



Measuring range: 0-1000J/cm2



Temperature range: 0-75°C



Accuracy: ±5%



Power: AAA*3 could be replaced by customers



Overall dimension: 75 (width)* 130 (length)*16(height)mm



Weight: app. 500g, aluminum alloy material







Notes:



Ambient temperature: 0-45 °C(Celsius degree)



Temperature duration: less than 10s under 110°C.



Automatic protection: it will turn off with no sensor object in 1 hour.







Calibration period:



For all the electronic components, such as the sensor, will get aging during usage. In order to guarantee the accuracy and performance of the meter, the meter should be calibrated yearly.



(In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after the change of battery.)







Warranty period:



One year guarantee with no charge since the purchase day. (One year from the date of purchase.)Artificial damage or damage caused by inevitable element, and consumables such as photographic coating and LCD are not included.



Application:



 UV energy detecting



 UV energy record



 UV light intensity detecting



 UV irradiation monitoring



 UV attenuation detecting



 Especially designed for UV LED light test
